Four original techniques for making static images interactive. Hover states, perspective warping, polygon hotspots, and visual coordinate mapping.

You generated a beautiful AI image. Now what? LOCUS turns it into something people can click, hover, and explore.

The Problem LOCUS Solves

AI image generators produce stunning static images. But static is dead. You want:

  • A monitor in the scene that displays live terminal text
  • A desk lamp that glows when you hover over it
  • Gauges with irregular shapes that respond to clicks
  • A before/after comparison slider

Traditional image maps are rectangles on flat images. AI-generated scenes have perspective, distortion, and irregular shapes. CSS top/left/width/height can't map content onto a tilted screen. LOCUS can.

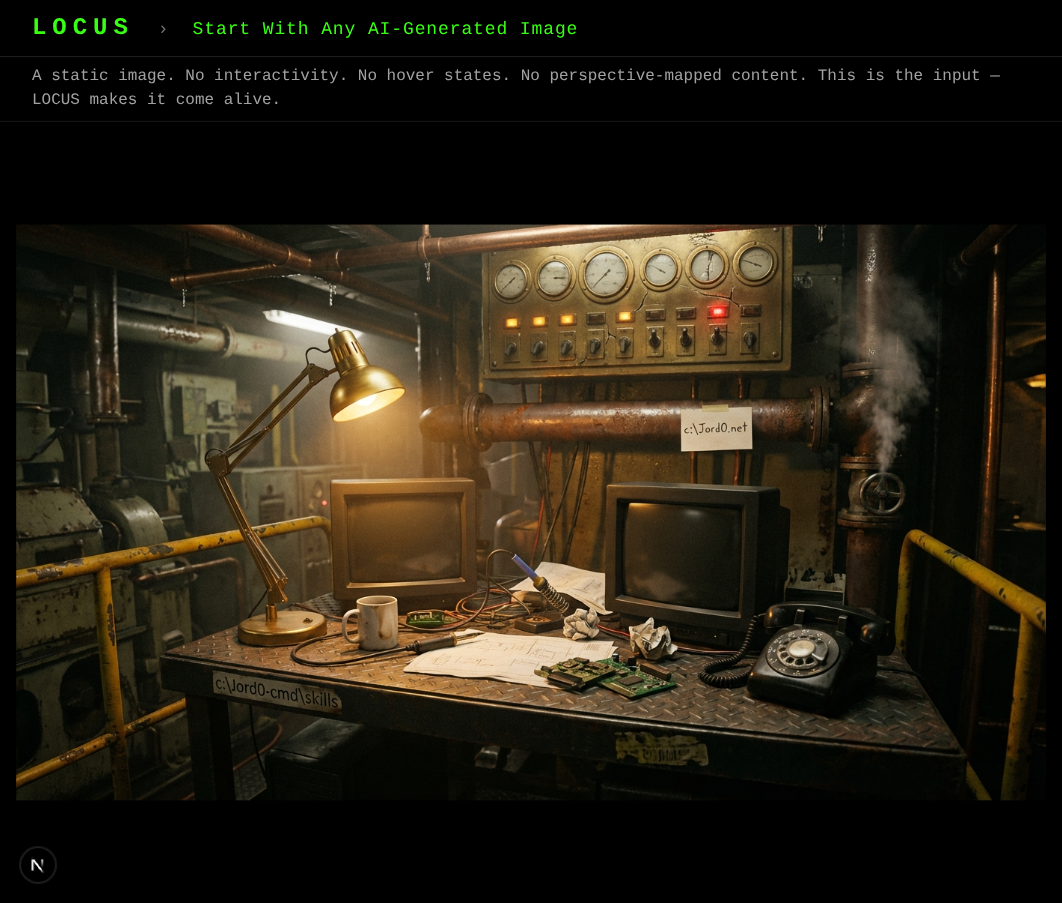

LOCUS — Start With Any AI-Generated Image A static AI-generated image. No interactivity. No hover states. LOCUS makes it come alive.

The Four Techniques

Technique Name What It Does
CSI Contextual State Injection Hover/click/scroll states for image elements
IQM Interactive Quad Mapping Drag-and-drop coordinate tuner
HQW Homography Quad Warp Map rectangular content onto perspective surfaces
ADT Area Drawing Tool Freeform polygon hotspot definition

They work together: IQM maps the quad coordinates → HQW warps content onto it → CSI generates hover states → ADT handles irregular shapes.

How It Works — The Human-in-the-Loop

LOCUS is collaborative. Claude builds the pages and components. You do the visual work in the browser.

1. You describe what you want ("overlay text on that monitor")
2. Claude builds a tuner page and starts a dev server
3. You open the browser and drag corners / draw shapes
4. You copy the coordinates and paste them back
5. Claude wires them into the production code
6. You review — adjust if needed
7. Done

Your eyes are the instrument. AI-generated images have unique distortions that code can't predict. The tuner tools exist so you can look at it and drag it until it's right.

CSI — Contextual State Injection

Make elements in AI images respond to interaction.

The idea: Crop an element (a lamp, a monitor, a gauge), feed it back to an AI image generator as a reference with instructions for the new state ("the lamp is now glowing bright amber"), and overlay the result at the original position.

What You Start With What CSI Produces
A dark desk lamp Lamp glowing warm amber on hover
A blank monitor Monitor showing green terminal text on click
A pressure gauge Gauge needle at different positions per state
Hover over the lamp → warm glow fades in
Click the monitor → boot sequence appears
Scroll past the gauge → needle sweeps from 0 to maximum

CSI also has an Analogue Fork — CSS-only state changes (brightness, hue-rotate, drop-shadow) for when you don't have access to an AI image generator.

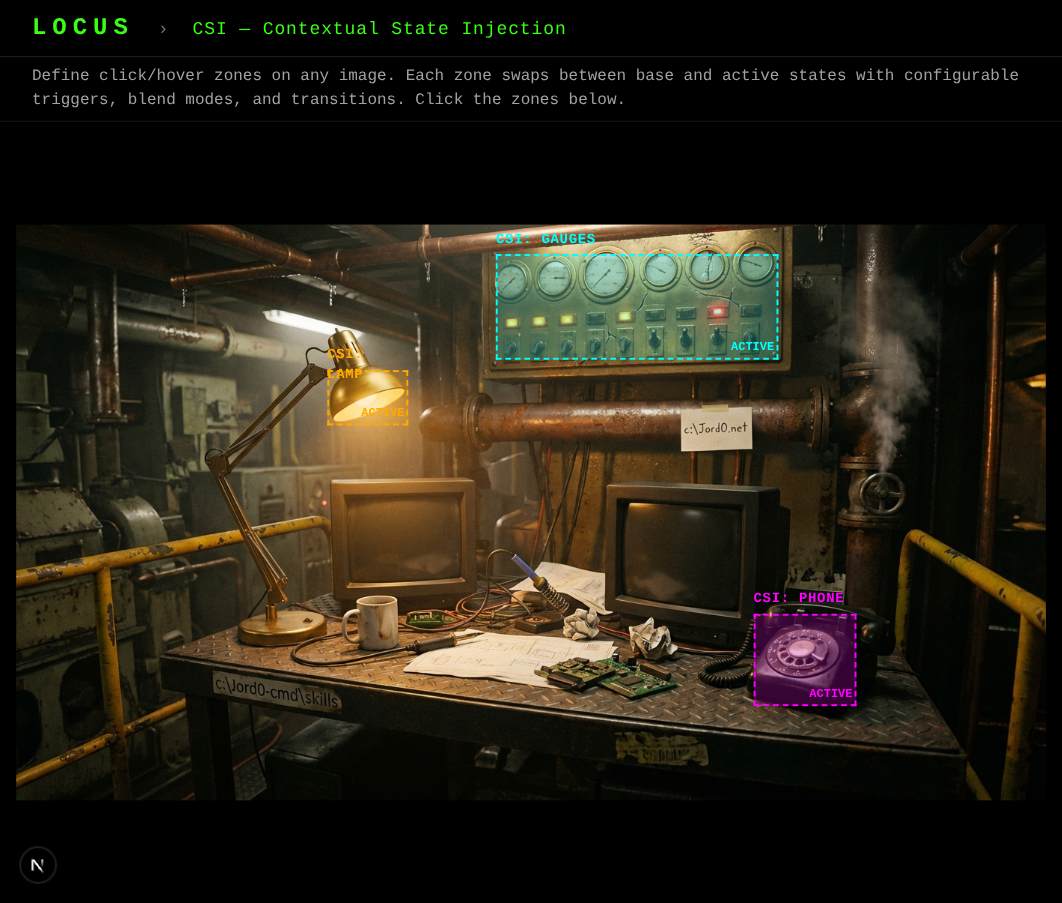

CSI Zones CSI in action — the gauge panel and rotary phone both have active hover zones with state overlays.

IQM — Interactive Quad Mapping

The visual coordinate tuner. Instead of guessing pixel positions, drag corners on the image.

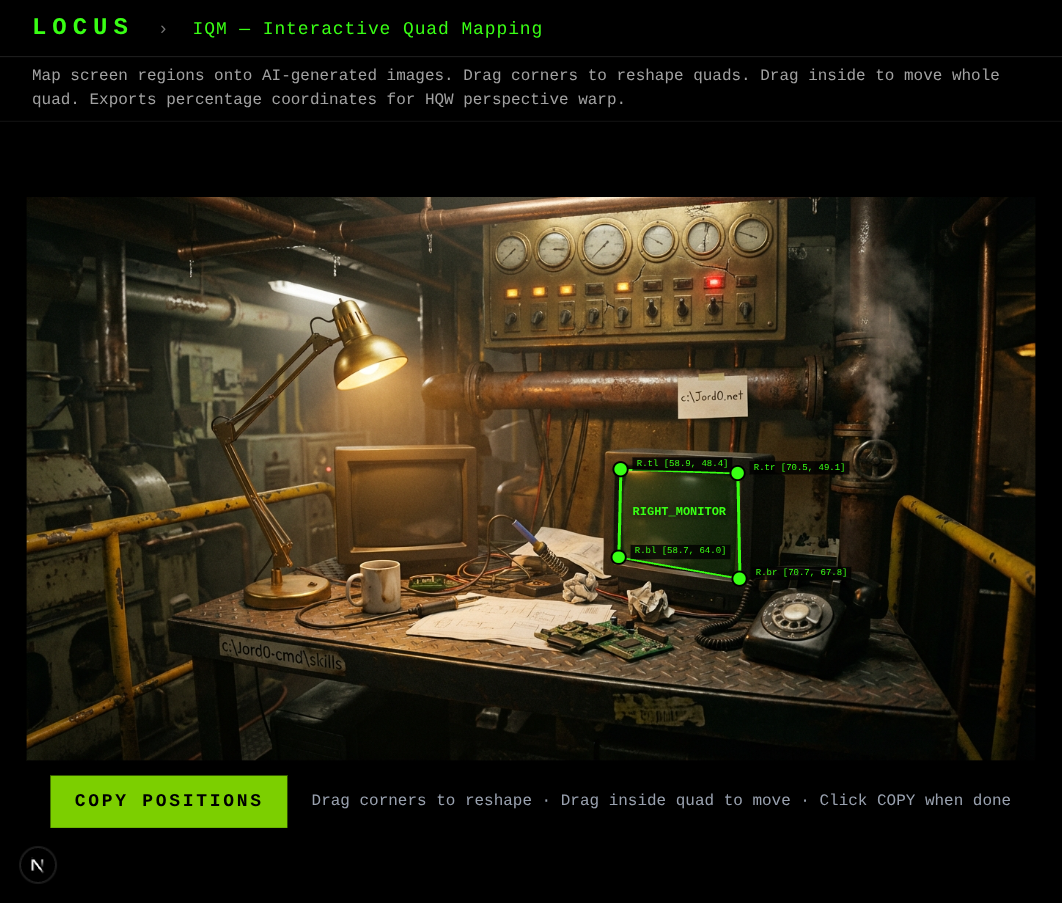

IQM Tuner IQM in action — drag the green corners to map the RIGHT_MONITOR quad. Click COPY POSITIONS when it looks right.

Before IQM: Guess percentages, screenshot, compare, nudge, repeat. 4-5 rounds of trial and error.

With IQM: Open the tuner, drag four corners to match the screen edges, click COPY POSITIONS. Done in 30 seconds.

The DebugTuner supports:

  • Multiple named quads with distinct colours
  • Corner dragging to reshape individual vertices
  • Whole-quad dragging to move all four corners together
  • One-click copy of all positions as JSON

HQW — Homography Quad Warp

Map rectangular content (HTML, text, video) onto any perspective surface using CSS matrix3d().

That monitor in your AI image isn't a perfect rectangle — it's perspective-distorted, slightly tilted, maybe barrel-distorted. HQW computes the exact 4x4 transformation matrix that warps a flat rectangle to match those four corners.

Your HTML terminal text  →  matrix3d() transform  →  Perfectly mapped onto the tilted screen

The math is 47 lines of linear algebra. You never touch it — you just drag corners in IQM and paste the coordinates.

HQW Warp HQW warping live terminal text onto a perspective CRT monitor. The content is real HTML, not an image.

ADT — Area Drawing Tool

Define irregular clickable regions by drawing polygons directly on the image.

Not everything is a rectangle. Gauges are circular. Smoke wisps are organic. Whisky glasses are... whisky-glass-shaped. ADT lets you draw freeform polygon boundaries with:

  • Click to place vertices on the image
  • Douglas-Peucker simplification to smooth rough drawings
  • Point-in-polygon hit testing for click/hover detection
  • Multiple named regions with distinct colours

The polygons export as percentage-based vertex arrays — responsive at any size.

ADT Debug Overlay ADT debug wireframe showing all mapped zones — IQM quads (LEFT_MONITOR, RIGHT_MONITOR) and freeform polygons with labelled centres. Toggle with Ctrl+Shift+D.

CompareSlider — Before/After Ghost Mode

Drag a slider to compare two versions of the same image.

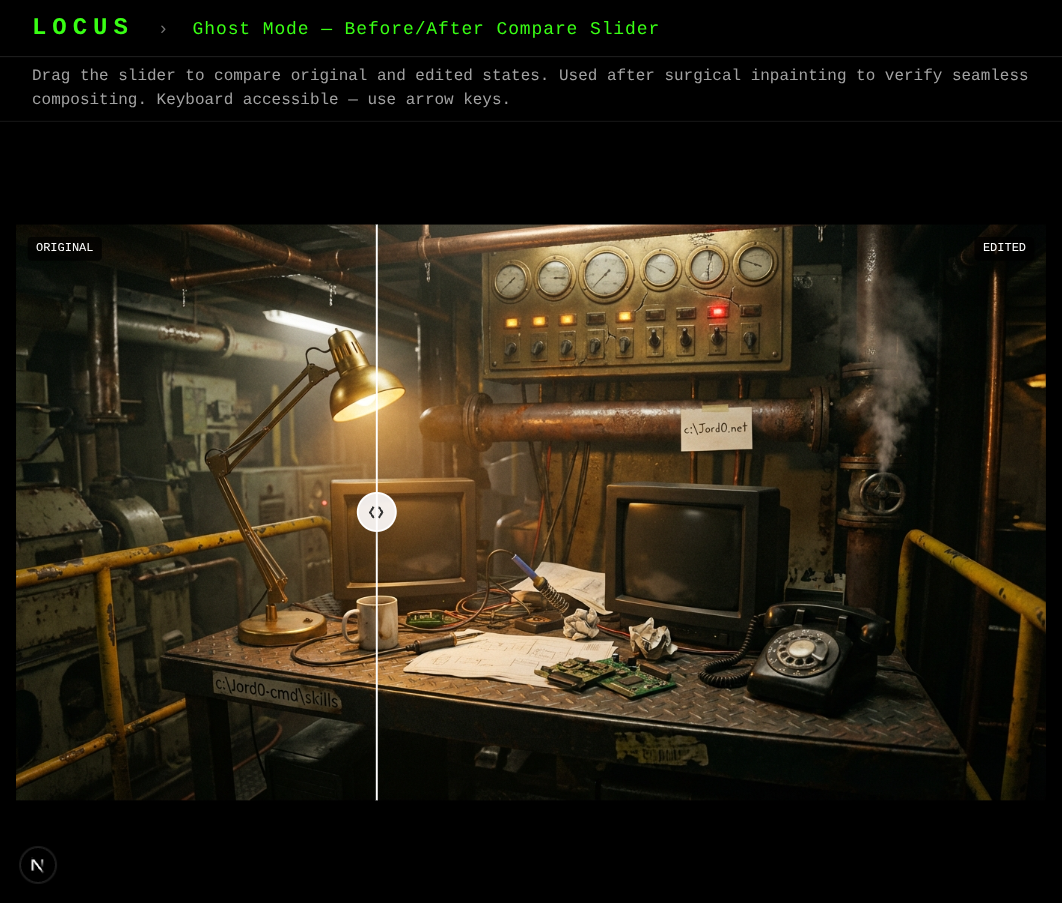

LOCUS CompareSlider Ghost Mode — drag the slider to compare original and edited versions. Keyboard accessible with arrow keys.

Use it for:

  • Before/after editing comparisons
  • State change demonstrations
  • A/B visual testing
  • Portfolio showcases

When to Use Each Technique

You Want To... Use
Add hover glow to a lamp CSI
Put live text on a tilted screen IQM → HQW
Make an irregular gauge clickable ADT
Show before/after versions CompareSlider
Position a rectangular overlay IQM (the DebugTuner is for rectangles too)
Create a full interactive scene All four together

Advanced Tips

Combine techniques on one scene

A single image can have:

  • 3 HQW-warped terminals showing different content
  • 5 CSI zones with hover effects
  • 2 ADT polygons for irregular shapes
  • 1 CompareSlider for before/after

All techniques use percentage-based coordinates — they're responsive and work at any viewport size.

The aspect-ratio container pattern

Don't use object-contain for CSI overlays

object-fit: contain creates a gap between the container and the rendered image. CSS absolute positions will be offset. Instead, wrap the image in a container with a matching aspect-ratio — the container IS the image bounds.

Security

LOCUS involves DOM injection and coordinate transforms. The skill includes DOMPurify sanitization for all overlay content, numeric validation for coordinates, and safe JSON.parse() patterns. Full security checklist included.

Pairs With OPTIC

OPTIC generates the images. LOCUS makes them interactive. See the Creative Pipeline recipe for the full workflow.

Prerequisites

  • React 18+ environment (Next.js, Vite, Remix, or standalone)
  • dompurify package for DOM sanitization
  • A running dev server (the tuner tools run in the browser)
  • No other external dependencies

Four techniques. One toolkit. Static images, made alive.
